2 way

Model

Power rating

Frequency range

VSWR

Isolation

Insertion loss

Impedance

Phase consistency

Amplitude consistency

Connector

Dimensions

Stock

PD2-0-3000MHz-SMAK-01

2W

DC-3000

≤1.25

≥5.6

≤0.8dB(Excluding theoretical loss 6.0dB)

50Ω

≤±3°

≤±0.3

SMA-F

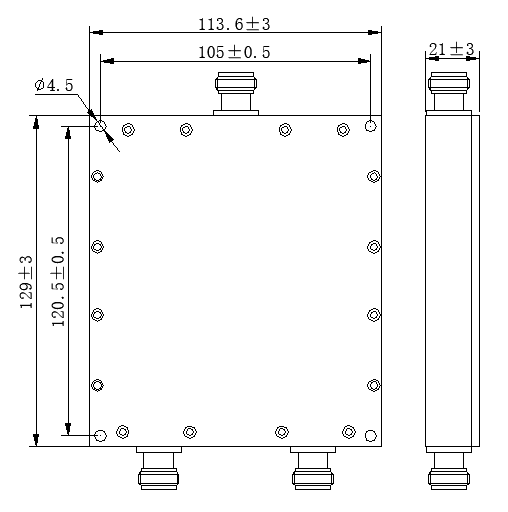

PD2-100-505MHz-N-03

50w

100-505

≤1.25

≥20

≤0.5dB(Excluding theoretical loss 3dB)

50Ω

N-F

129×113.6×21

PD2-500-6000MHz-S-01

30w

500-6000

≤1.35

≥18

≤1.0dB(Excluding theoretical loss 3.0dB)

50Ω

SMA-F

48x35x12

PD2-600-4000MHz-N-01

50w

600-4000

≤1.25

≥20

≤1.0dB(Excluding theoretical loss 3.0dB)

50Ω

N-F

PD2-698-2700MHz-N-01

50W

698-2700

≤1.25

≥20

≤0.4dB(Excluding theoretical loss 3.0dB)

50Ω

N-F

PD2-1800-40000MHz-2.92K-01

10W

1800-40000

≤1.6

≥16

≤1.2dB(Excluding theoretical loss 3.0dB)

50Ω

≤±5°

≤±0.5

2.92-F

PD2-2000-8500MHz-S-01

30W

2000-8500

Typ1.16/Max1.25

Typ22/Min20

≤0.6dB(Excluding theoretical loss 3.0dB)

50Ω

≤±4°

≤±0.4

SMA-F

PD2-136-174MHz-N-01

50

136-174

≤1.25

≥18

≤0.5dB(Excluding theoretical loss 3dB)

50

N-F

PD2-350-520MHz-N-01

50

350-520

≤1.25

≥20

≤0.5dB(Excluding theoretical loss 3dB)

50

N-F
